## Load packages and data
```{r}
library(palmerpenguins)
library(rstan)
rstan_options("auto_write" = TRUE)
options(mc.cores = parallel::detectCores())
```
## Statistical models of Penguin bill morphology.
We'll be studying the relationship between two numbers about penguin bills.
Specifically, we'll ask **"Are longer bills also deeper?"**
This question might not be the most interesting ecologically, but it is a great chance to practice some interesting stats.
Let's begin with plotting the data :
```{r}
#| fig-cap: Bill depth (mm) as predicted by bill length (mm) across the entire `palmerpenguins` dataset.
# Remove NAs
penguins_clean <- na.omit(penguins[, c("bill_length_mm", "bill_depth_mm")])
# Plot data
plot(penguins_clean$bill_length_mm,
penguins_clean$bill_depth_mm,
xlab = "Bill length (mm)",
ylab = "Bill depth (mm)",
pch = 19,
cex = 0.7)
# Regression
reg <- lm(bill_depth_mm ~ bill_length_mm,
data = penguins_clean)
# Regression lines
abline(reg,
col = "steelblue",
lwd = 3)
```
Let's write a simple statistical model for these data:
$$
\begin{align}
\text{Bill depth}_i &\sim \text{Normal}(\mu_i, \sigma) \\
\mu_i &= \beta_0 + \beta_1\times\text{Bill length}_i \\
\beta_0 &\sim \text{Normal}(??) \\
\beta_1 &\sim \text{Normal}(??) \\
\sigma &\sim \text{Exponential}(??)
\end{align}
$$
What should our priors be?
Before we can answer that question, we have a more important question:
:::{.callout-warning}
# WHERE IS ZERO?
Specifically, what does it mean *biologically* when bill lengths is at 0 ? Does it make sense?
:::
If we fit a model like this **without** thinking about the location of zero, we get some pretty silly answers:
```{r}
coef(lm(bill_depth_mm ~ bill_length_mm, data = penguins))
```
When the value of bill length is 0, the average of the response is the intercept:
$$
\begin{align}
\mu_i &= \beta_0 + \beta_1\times\text{Bill length}_i \\
\mu_i &= \beta_0 + \beta_1\times0 \\
\mu_i &= \beta_0 \\
\end{align}
$$
But, if we take the data as we found it, we're going to be talking about $\beta_0$ as the depth of a penguin's bill _when the bill has 0 length!_
Clearly that isn't a very meaningful value. From the point of view of setting priors and interpreting coefficients, it helps a lot to set a meaningful 0.
A very common choice is to **subtract the average** from your independent variable, so that penguins with an average bill length now have a mean of 0:
$$
\begin{align}
\text{Bill depth}_i &\sim \text{Normal}(\mu_i, \sigma) \\
\mu_i &= \beta_0 + \beta_1\times(\text{Bill length}_i - \overline{\text{Bill length}})\\
\beta_0 &\sim \text{Normal}(??) \\
\beta_1 &\sim \text{Normal}(??)
\end{align}
$$
Now $\beta_0$ means the average _bill depth_ at the average _bill length_.
Using this "new" data, it becomes easier to think about priors:
$$
\begin{align}
\text{Bill depth}_i &\sim \text{Normal}(\mu_i, \sigma) \\
\mu_i &= \beta_0 + \beta_1\times(\text{Bill length}_i - \overline{\text{Bill length}})\\
\beta_0 &\sim \text{Normal}(17,2) \\
\beta_1 &\sim \text{Normal}(0,.5) \\
\sigma &\sim \text{Exponential}(0.5)
\end{align}
$$
:::{.callout-note}
## Exercise
What continuous predictors have you used in your analysis? How would you find a biologically meaningful zero? Think about how you would centre time, age, mass, fitness etc.
:::
## Prior predictive simulations
Armed with this model, it becomes much easier to think about prior predictions.
We'll make a bunch of lines derived from the equation above. There's two steps:
1. Centre the predictor
2. Make up a vector that goes from the minimum to the maximum of the predictor. This is just for convenience!
```{r}
bill_len_centered <- with(penguins_clean,
bill_length_mm - mean(bill_length_mm))
## make up a short vector
some_bill_lengths <- seq(from = min(bill_len_centered),
to = max(bill_len_centered),
length.out = 10)
```
:::{.callout-warning}
## Shortcuts to these common tasks
These tasks are so common that they are automated in helper functions.
For centering predictors, see the `?scale` function `?scale`
For creating a short vector over the range of a predictor, use `seq(min(x), max(x), length.out = n)`.
:::

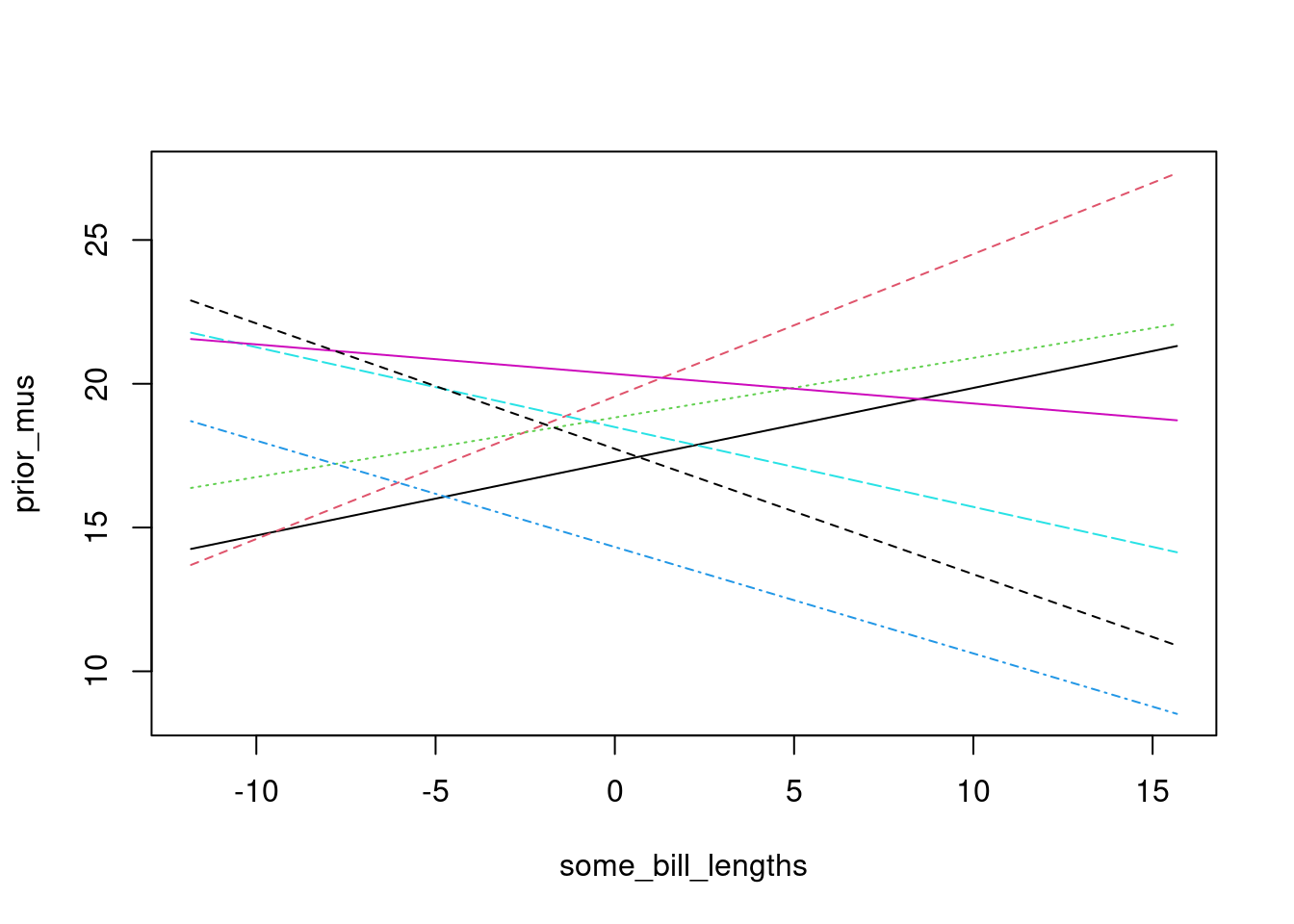

To simulate, we'll use some matrix algebra, as we saw in lecture:
```{r}
# Parameters to simulate
slopes <- rnorm(7, 0, .5)
inters <- rnorm(7, 17, 2)
# Basis of the regression
X <- cbind(1, some_bill_lengths)
B <- rbind(inters, slopes)
# Bill length
knitr::kable(head(X))
# Regression parameters
knitr::kable(head(B))
# Simulation for mu
prior_mus <- X %*% B
# Draw results
matplot(x = some_bill_lengths,
y = prior_mus, type = "l")
```
:::{.callout-note}
## Exercise
Copy the code above. Increase the number of simulations and study the structure of the priors. Which prior are too wide? Which are too narrow?
:::
### Simulating Observations
There are always at least TWO kinds of predictions we can be thinking about:
1. Predicted averages. This is often called a "confidence" interval for a regression line.
2. Predicted observations. This is often called a "prediction" interval.

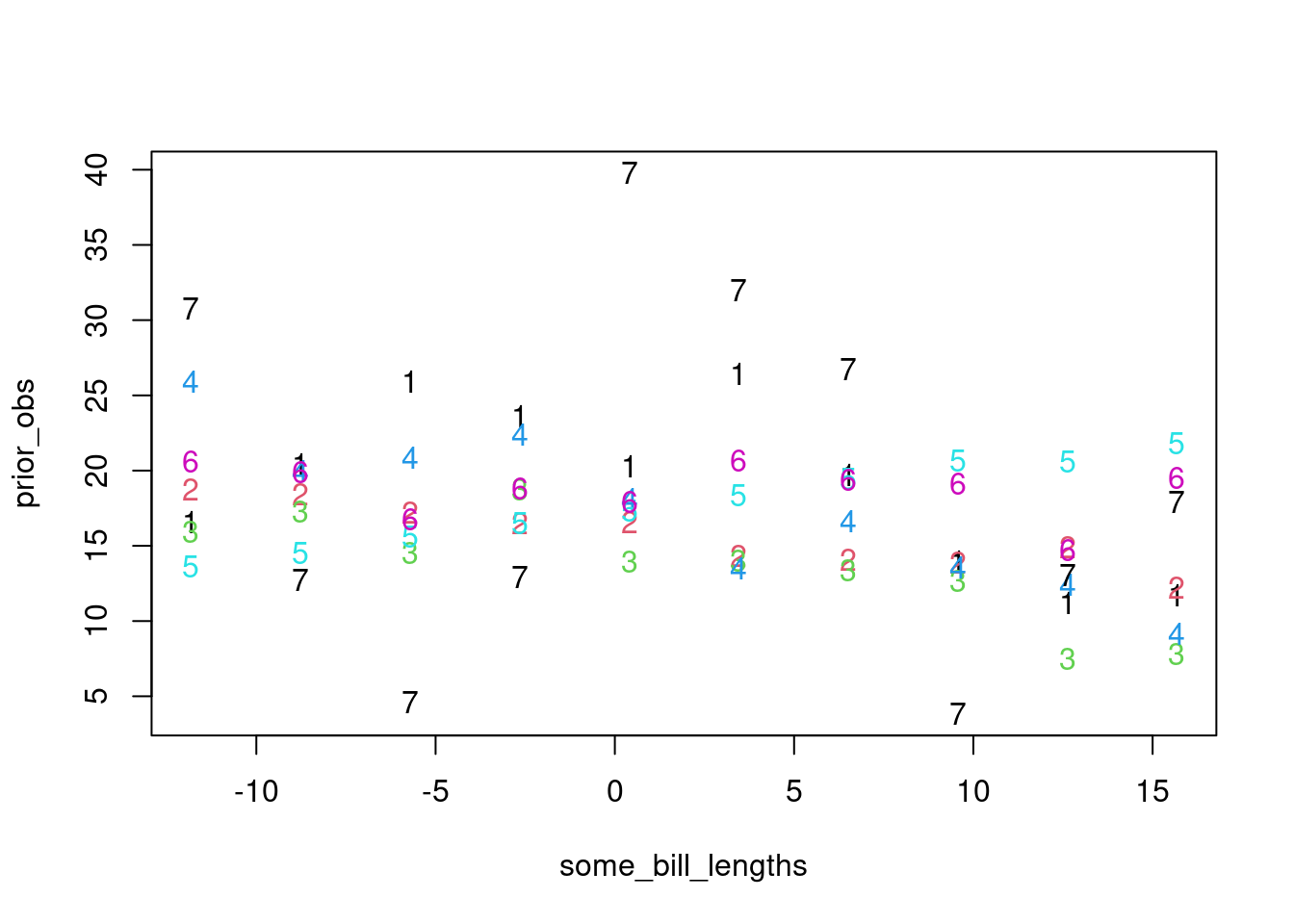

We can use the full model to simulate observations!
```{r}
# Simulate parameters
slopes <- rnorm(7, 0, .5)
inters <- rnorm(7, 17, 2)
sigmas <- rexp(7, rate = 0.3)
# Basis of the regression
X <- cbind(1, some_bill_lengths)
B <- rbind(inters, slopes)
# Simulation for mu
prior_mus <- X %*% B
# Result object for the simulated mu
prior_obs <- matrix(0, nrow = nrow(prior_mus), ncol = ncol(prior_mus))
# Simulate observation
for (j in 1:ncol(prior_obs)) {
prior_obs[,j] <- rnorm(n = nrow(prior_mus),
mean = prior_mus[,j],
sd = sigmas[j])
}
# Plot results
matplot(x = some_bill_lengths,
y = prior_obs, type = "p")
```
Base R version with small multiples:
```{r}
set.seed(42)
n_sim <- 7
# Simulate parameters
slopes <- rnorm(n_sim, 0, .5)
inters <- rnorm(n_sim, 17, 2)
sigmas <- rexp(n_sim, rate = 0.2)
# Generate X
x_sim <- seq(-10, 10, length.out = 6)
# Plot structure
par(mfrow = c(2, 4), mar = c(3, 3, 2, 1))
for (i in seq_len(n_sim)) {
# Build regression
avg <- inters[i] + slopes[i] * x_sim
# Sample observations from regression average
obs <- rnorm(length(avg), mean = avg, sd = sigmas[i])
# Plot regression result
plot(x_sim,
avg,
type = "l",
col = i + 1,
lwd = 2,
ylim = range(c(avg, obs)),
xlab = "x",
ylab = "value",
main = paste("Sim", i))
# Plot points
points(x_sim, obs, pch = 21, bg = i + 1, col = i + 1)
}
```
:::{.callout-tip}
### EXERCISE
Pick one of the two simulations above and modify it. Here are some suggested modifications:
* Experiment with priors that are "too narrow" or "too wide".
* Try a different distribution than the one used
* Instead of bill size, imagine that we are applying this model to YOUR data. What would you change?
:::
## Linear regression in Stan
Now let's write this model with Stan.
We'll begin with a simple model that has no posterior predictions:
```{r}
#| class-output: stan
normal_regression_no_prediction <- stan_model(
file = "topics/02_regression/normal_regression_no_prediction.stan",
model_name = "normal_regression_no_prediction")
normal_regression_no_prediction
```
In order to get the posterior, we need to put our data in Stan. We follow the same steps as previously:
* Remember to remove NAs first!
* arrange the data in a list
* pass the data to a Stan model to estimate.
```{r}
penguins_no_NA <- na.omit(penguins[, c("bill_length_mm", "bill_depth_mm", "species")])
penguins_no_NA$bill_length_center <- penguins_no_NA$bill_length_mm -
mean(penguins_no_NA$bill_length_mm)
## Assemble data list
data_list <- with(penguins_no_NA,
list(N = length(bill_length_center),
bill_len = bill_length_center,
bill_dep = bill_depth_mm))
## Run the sampler, using the compiled model
normal_reg_no_pred <- sampling(
object = normal_regression_no_prediction,
data = data_list,
refresh = 0)
summary(normal_reg_no_pred)$summary
```

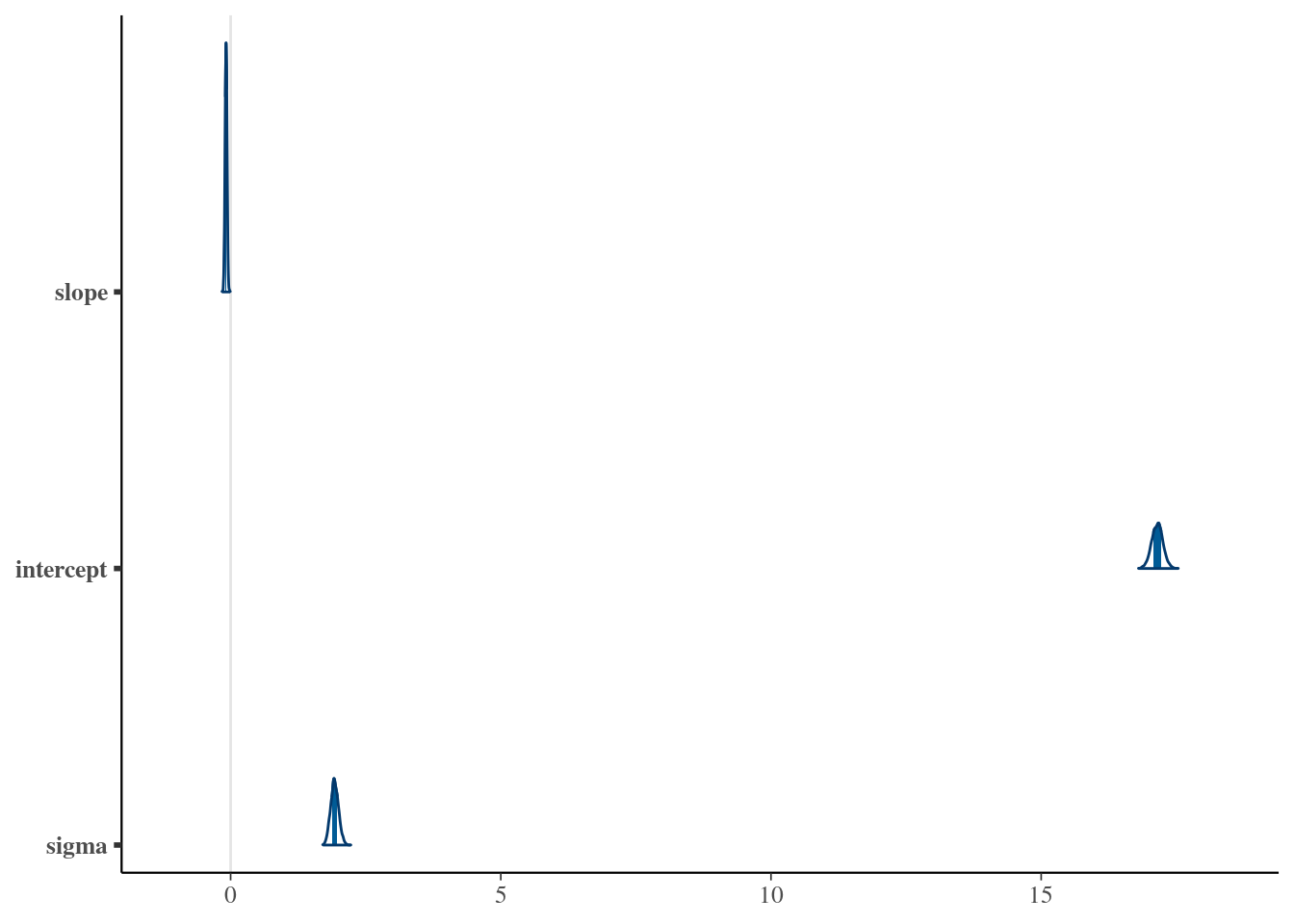

```{r}
bayesplot::mcmc_areas(normal_reg_no_pred,
pars = c("slope",
"intercept",
"sigma"))
```
:::{.callout-tip}
### EXERCISE
**Discussion** : Look only at the posterior distribution of the slope above.
Do we have evidence that there's a relationship between bill length and bill depth.
:::
## Posterior predictions in R
We can calculate a posterior prediction line directly in R for these data.
I'll show each step in this workflow separately:
```{r}
draws_inspect <- rstan::extract(normal_reg_no_pred,
pars = c("slope", "intercept", "sigma"))
str(draws_inspect)
```
`rstan::extract()` pulls the posterior draws for each parameter into a named list — e.g. `draws_inspect$slope`, `draws_inspect$intercept` are numeric vectors with one value per MCMC draw.
Next we combine these posteriors with a vector of observations to make a posterior distribution of LINES:
```{r}
draws_reg <- rstan::extract(normal_reg_no_pred, pars = c("slope", "intercept"))
x_seq <- seq(-15, 15, length.out = 5)
# mu_draws: matrix (rows = MCMC draws, cols = x-values)
mu_draws <- outer(as.vector(draws_reg$slope), x_seq) + as.vector(draws_reg$intercept)
str(mu_draws)
```
Finally, let's plot these:
```{r}
q <- apply(mu_draws, 2, quantile, probs = c(0.025, 0.25, 0.5, 0.75, 0.975))
plot(penguins_no_NA$bill_length_center, penguins_no_NA$bill_depth_mm,
xlab = "Bill length (centered, mm)", ylab = "Bill depth (mm)", pch = 19, cex = 0.5)
# 95% Confidence intervals
polygon(c(x_seq, rev(x_seq)), c(q[1,], rev(q[5,])),
col = adjustcolor("steelblue", 0.15), border = NA)
# 50% Confidence intervals
polygon(c(x_seq, rev(x_seq)), c(q[2,], rev(q[4,])),
col = adjustcolor("steelblue", 0.30), border = NA)
# Model
lines(x_seq, q[3,], col = "steelblue", lwd = 2)
```

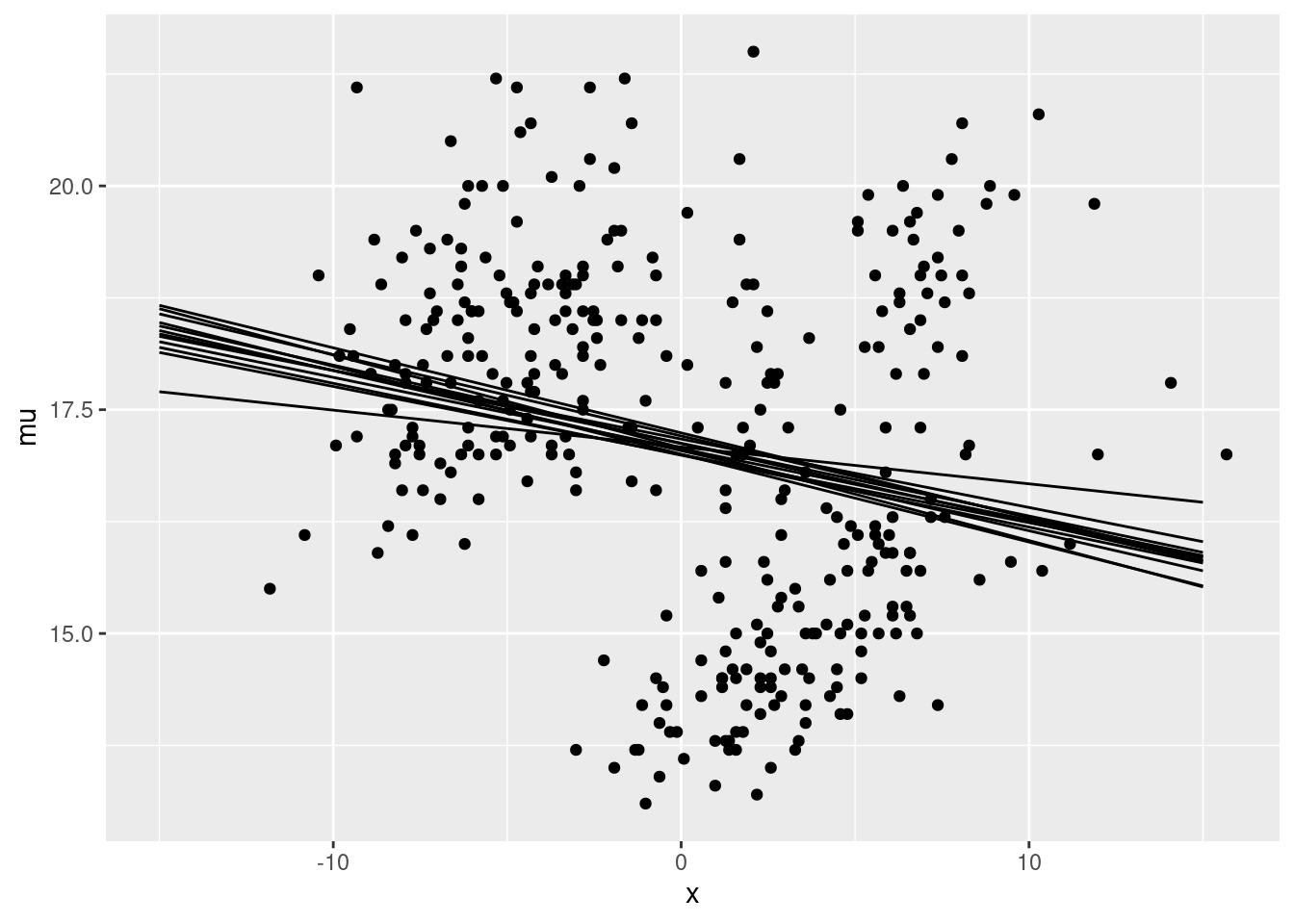

#### Using posterior draws individually
The above workflow makes a nice figure, but perhaps it helps to see the individual lines to understand what is happening here.
We can get these by sampling rows directly from the extracted draws:
```{r}
set.seed(42)
draw_idx <- sample(length(draws_reg$slope), 12)
draws12 <- data.frame(.draw = draw_idx,
slope = draws_reg$slope[draw_idx],
intercept = draws_reg$intercept[draw_idx])
knitr::kable(draws12)
```
```{r}
plot(penguins_no_NA$bill_length_center, penguins_no_NA$bill_depth_mm,
xlab = "Bill length (centered, mm)", ylab = "Bill depth (mm)", pch = 19, cex = 0.5)
for (i in seq_len(nrow(draws12))) {
lines(x_seq, draws12$intercept[i] + draws12$slope[i] * x_seq,
col = adjustcolor("steelblue", 0.6))
}
```
## Posterior predictions in Stan
We can also make these posterior predictions in Stan.
First, compile the model:
```{r}
#| class-output: stan
normal_regression <- stan_model(file = here::here("topics/02_regression/normal_regression.stan"))
normal_regression
```
Then prepare the data and feed it into the `sampling()` function.
```{r}
penguins_no_NA <- na.omit(penguins[, c("bill_length_mm",
"bill_depth_mm",
"species")])
penguins_no_NA$bill_length_center <- penguins_no_NA$bill_length_mm -
mean(penguins_no_NA$bill_length_mm)
data_list <- with(penguins_no_NA,
list(N = length(bill_length_center),
bill_len = bill_length_center,
bill_dep = bill_depth_mm,
npost = 6,
pred_values = seq(min(penguins_no_NA$bill_length_center),
max(penguins_no_NA$bill_length_center), length.out = 6)
))
bill_norm_reg <- sampling(normal_regression,
data = data_list,
refresh = 0)
```

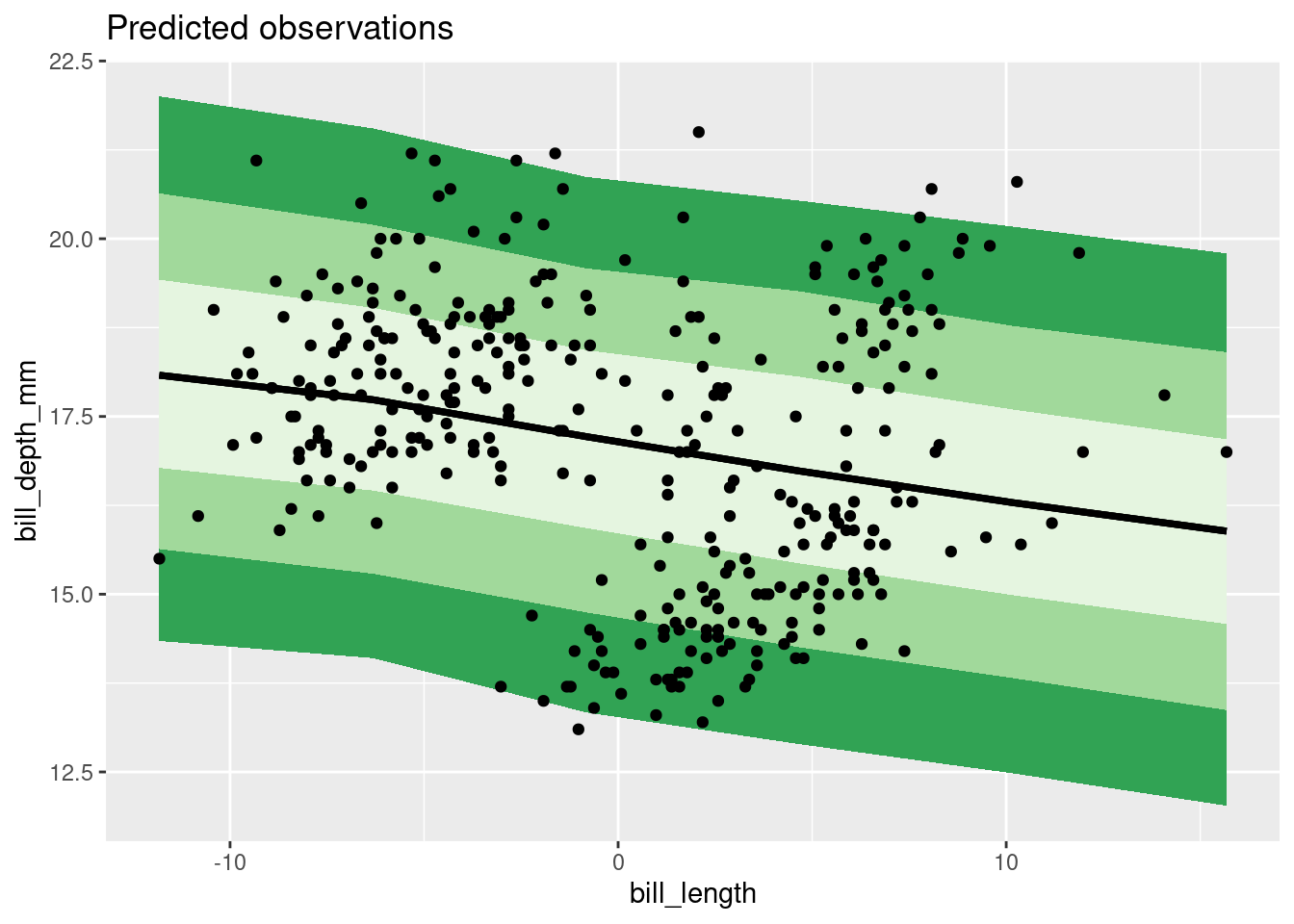

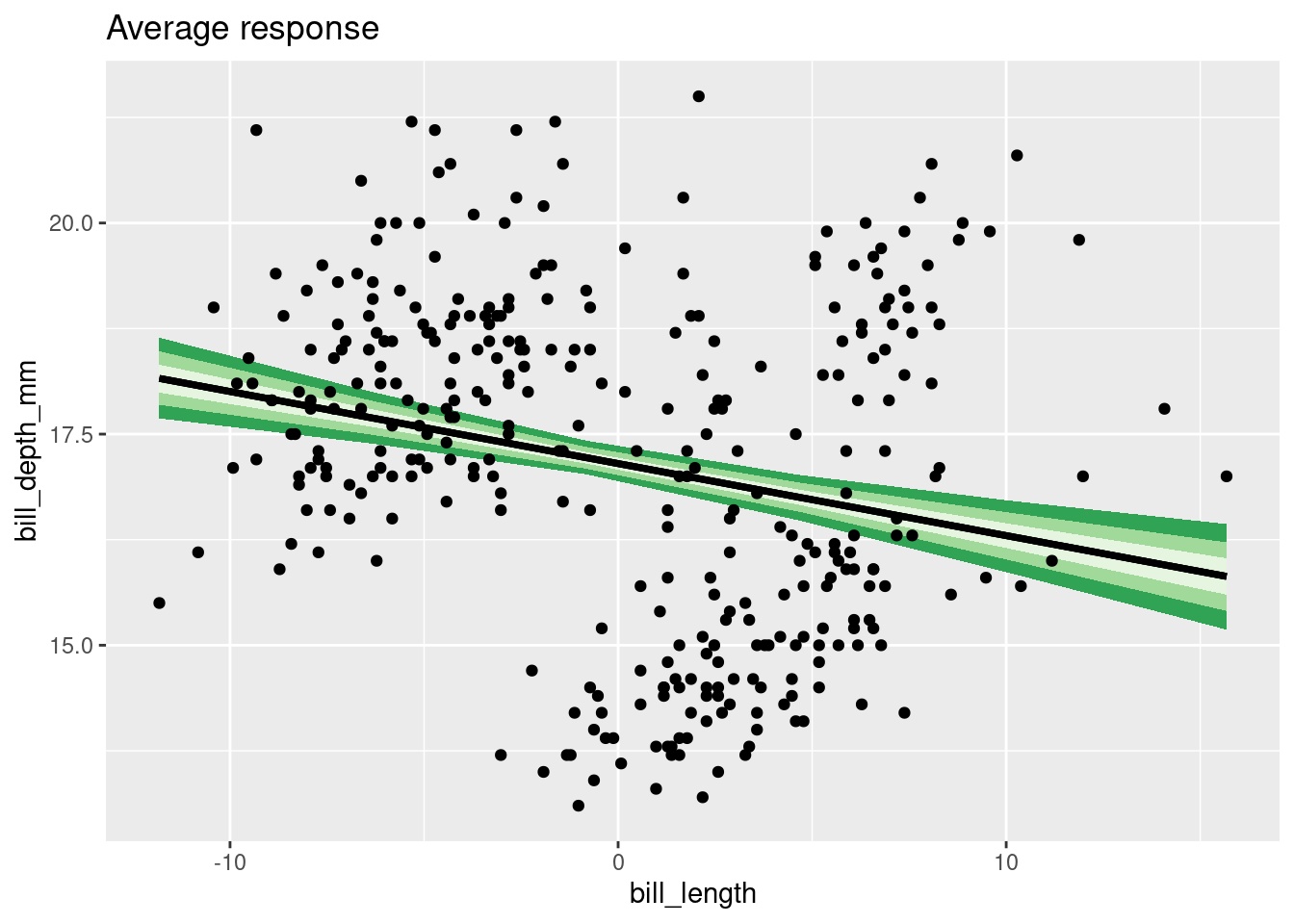

```{r}
#| layout-ncol: 2
draws_avg <- rstan::extract(bill_norm_reg, "post_bill_dep_average")$post_bill_dep_average
draws_obs <- rstan::extract(bill_norm_reg, "post_bill_dep_obs")$post_bill_dep_obs
x_pred <- data_list$pred_values
q_avg <- apply(draws_avg, 2, quantile, probs = c(0.025, 0.25, 0.5, 0.75, 0.975))
q_obs <- apply(draws_obs, 2, quantile, probs = c(0.025, 0.25, 0.5, 0.75, 0.975))
y_range <- range(penguins_no_NA$bill_depth_mm)
# Average response ()
plot(penguins_no_NA$bill_length_center,
penguins_no_NA$bill_depth_mm,
xlab = "Bill length (centered, mm)",
ylab = "Bill depth (mm)",
main = "Average response",
pch = 19,
cex = 0.5,
ylim = y_range)
# 95 % interval
polygon(c(x_pred, rev(x_pred)),
c(q_avg[1,], rev(q_avg[5,])),
col = adjustcolor("darkgreen", 0.15),
border = NA)
# 50 % interval
polygon(c(x_pred, rev(x_pred)),
c(q_avg[2,], rev(q_avg[4,])),
col = adjustcolor("darkgreen", 0.30),
border = NA)
lines(x_pred, q_avg[3,],
col = "darkgreen",
lwd = 2)
# Predicted observations
plot(penguins_no_NA$bill_length_center,
penguins_no_NA$bill_depth_mm,
xlab = "Bill length (centered, mm)",
ylab = "Bill depth (mm)",
main = "Predicted observations",
pch = 19,
cex = 0.5,
ylim = y_range)
# 95 % Interval
polygon(c(x_pred, rev(x_pred)),
c(q_obs[1,], rev(q_obs[5,])),
col = adjustcolor("darkgreen", 0.15),
border = NA)
# 50 % Interval
polygon(c(x_pred, rev(x_pred)),
c(q_obs[2,], rev(q_obs[4,])),
col = adjustcolor("darkgreen", 0.30),
border = NA)
lines(x_pred, q_obs[3,], col = "darkgreen", lwd = 2)
```
:::{.callout-tip}
### EXERCISE
Extend this model to include species. Specifically, let each species have its own value of the `intercept`. This involves combining this regression example with the previous activity on discrete predictors.
When you're done, look at the resulting summary of coefficients. What do you notice that's different?
:::
:::{.callout-note collapse="true"}
### SOLUTION
```{r, include=TRUE}
#| class-output: stan
normal_regression_spp <- stan_model(file = here::here("topics/02_regression/normal_regression_spp.stan"),
model_name = "normal_regression_spp")
normal_regression_spp
```
We set up a list for this model just as we did before.
Note that this time we are using TRIPLE the `pred_values`, because we want to run independent predictions for each species.
```{r}
bill_vec <- seq(min(penguins_no_NA$bill_length_center),
max(penguins_no_NA$bill_length_center),
length.out = 6)
data_list_spp <- with(penguins_no_NA,
list(N = length(bill_length_center),
bill_len = bill_length_center,
bill_dep = bill_depth_mm,
spp_id = as.numeric(as.factor(species)),
npost = 3*6,
pred_values = rep(bill_vec, 3),
pred_spp_id = rep(1:3, each = 6)))
normal_reg_spp_post <- sampling(normal_regression_spp,
data = data_list_spp, refresh = 0)
```
Note that the sign of the slope is different now!
```{r}
summaryReg <- summary(normal_reg_spp_post)$summary
knitr::kable(summaryReg)
```
:::
### Plotting posterior predictions
Let's plot the posterior credible ribbons for this regression
```{r}
#| layout-ncol: 2
#| warning: false
draws_avg_spp <- rstan::extract(normal_reg_spp_post,
"post_bill_dep_average")$post_bill_dep_average
draws_obs_spp <- rstan::extract(normal_reg_spp_post,
"post_bill_dep_obs")$post_bill_dep_obs
spp_levels <- levels(penguins$species)
spp_colors <- c("#66C2A5", "#FC8D62", "#8DA0CB")
n_pred <- 6 # predictions per species
x_range_spp <- range(data_list_spp$pred_values)
y_range_spp <- range(penguins_no_NA$bill_depth_mm)

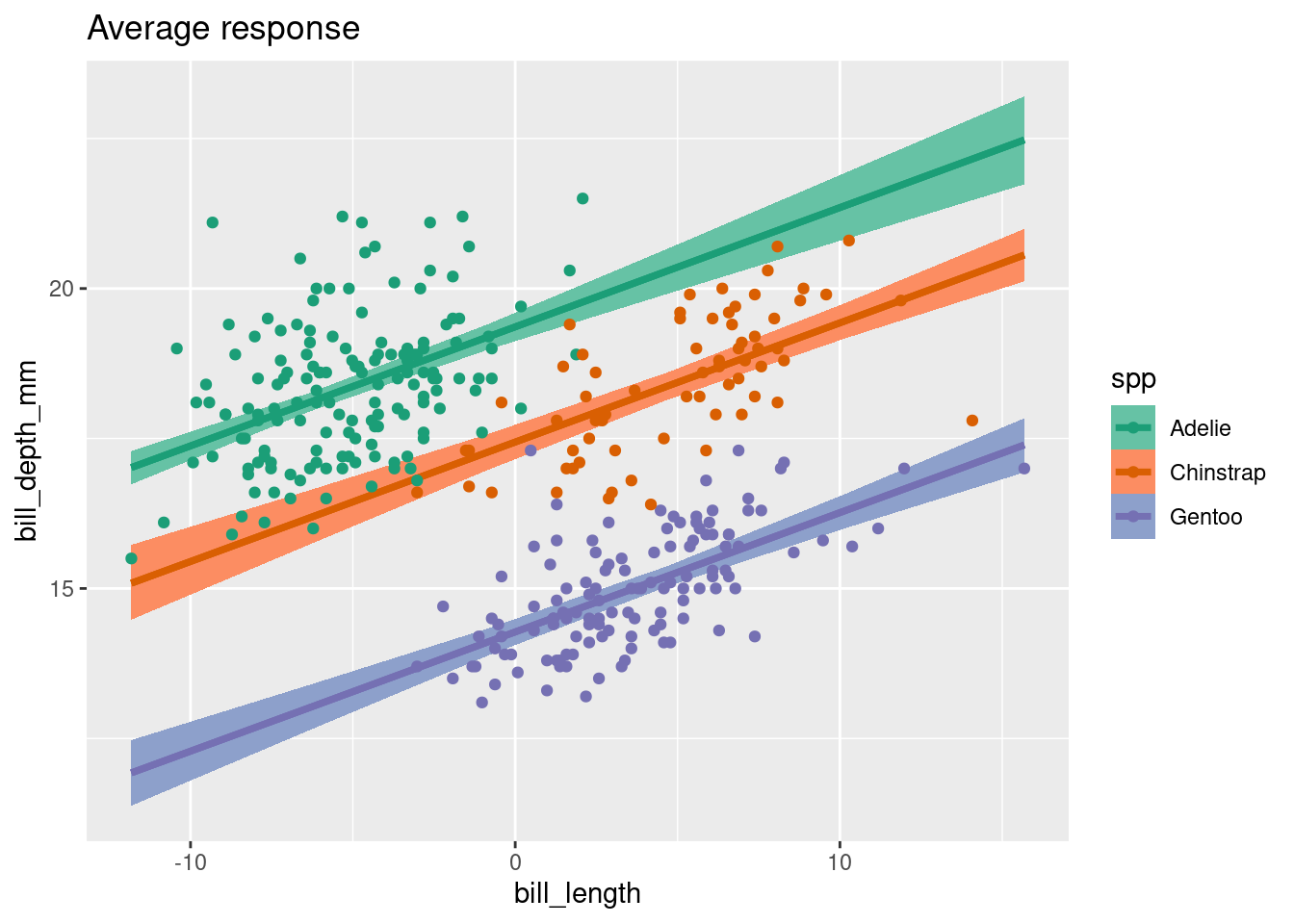

# --- Average response (in one plot) ---
plot(0, 0,
type = "n",
xlim = x_range_spp, ylim = y_range_spp,
xlab = "Bill length (centered, mm)",
ylab = "Bill depth (mm)",
main = "Average response")
for (s in seq_along(spp_levels)) {
idx <- ((s - 1) * n_pred + 1):(s * n_pred)
x_s <- data_list_spp$pred_values[idx]
q_s <- apply(draws_avg_spp[, idx],
2,
quantile,
probs = c(0.025, 0.25, 0.5, 0.75, 0.975))
polygon(c(x_s, rev(x_s)),
c(q_s[1,], rev(q_s[5,])),
col = adjustcolor(spp_colors[s], 0.15),
border = NA)
polygon(c(x_s, rev(x_s)),
c(q_s[2,], rev(q_s[4,])),
col = adjustcolor(spp_colors[s], 0.30),
border = NA)
lines(x_s, q_s[3,], col = spp_colors[s], lwd = 2)
spp_pts <- penguins_no_NA[as.numeric(as.factor(penguins_no_NA$species)) == s, ]
points(spp_pts$bill_length_center, spp_pts$bill_depth_mm,
pch = 19, cex = 0.5, col = spp_colors[s])
}
legend("topright", legend = spp_levels, col = spp_colors, lwd = 2, bty = "n")

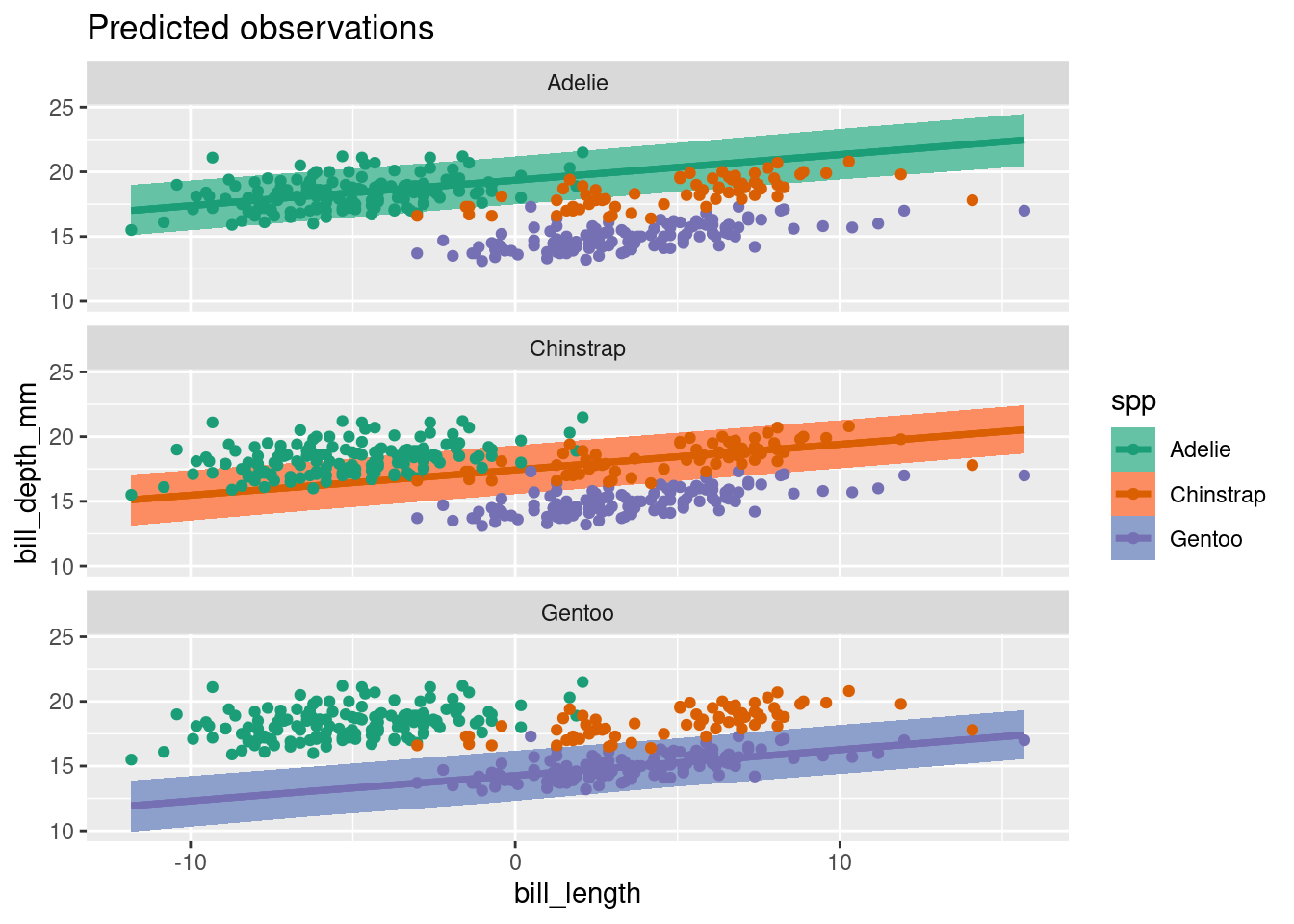

# --- Predicted observations (one panel per species) ---
par(mfrow = c(3, 1), mar = c(4, 4, 2, 1))
for (s in seq_along(spp_levels)) {
idx <- ((s - 1) * n_pred + 1):(s * n_pred)
x_s <- data_list_spp$pred_values[idx]
q_s <- apply(draws_obs_spp[, idx], 2, quantile,
probs = c(0.025, 0.25, 0.5, 0.75, 0.975))
spp_pts <- penguins_no_NA[as.numeric(as.factor(penguins_no_NA$species)) == s, ]
plot(spp_pts$bill_length_center,
spp_pts$bill_depth_mm,
xlim = x_range_spp,
ylim = y_range_spp,
xlab = "Bill length (centered, mm)",
ylab = "Bill depth (mm)",
main = spp_levels[s],
pch = 19,
cex = 0.5,
col = spp_colors[s])
polygon(c(x_s, rev(x_s)),
c(q_s[1,], rev(q_s[5,])),
col = adjustcolor(spp_colors[s], 0.15),
border = NA)
polygon(c(x_s, rev(x_s)),
c(q_s[2,],
rev(q_s[4,])),
col = adjustcolor(spp_colors[s], 0.30),
border = NA)
lines(x_s, q_s[3,],
col = spp_colors[s],
lwd = 2)
}
```
## Exercise!
1. We have one model without species identity as an independent variable, and one which includes species. Look at the difference in $\sigma$ between these two models. Why did the value change?
2. **Posterior predictions** Edit the generated quantities blocks of `normal_regression.stan` and `normal_regression_spp.stan` to create replicate observations for all N observations (that is, `yrep` as we did in the model of [bill depth previously](../discrete_predictor/index.qmd)). Use this to compare the models using `bayesplot::ppc_dens_overlay()` or another function from the `bayesplot` package.
